AiM Formula Steering Wheel 3
Formula Steering Wheel 3, specifically designed for Formula and sports cars
Formula Steering Wheel 3, for dimensions ( 27cm) and structure, has been specifically designed for Formula and Sports cars. It offers the opportunity to visualize in real time all the information acquired by EVO4S or EVO5 loggers in a typical "racing" look.

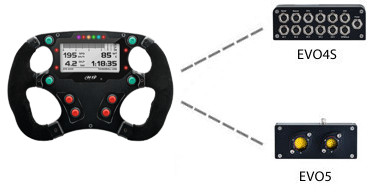

Connection
example
A flexible display for your data and alerts
The new Formula Steering Wheel 3 features a small, fully configurable graphical display, showing the data sampled by EVO4S or EVO5 with a precise and enjoyable visualization.
You can keep constantly under control lap times and all values coming from the ECU, from the accelerometers and from the GPS (included in EVO4S/EVO5 kits).
The screen can be backlighted in one of the seven available colors.
 Fully configurable graphical display

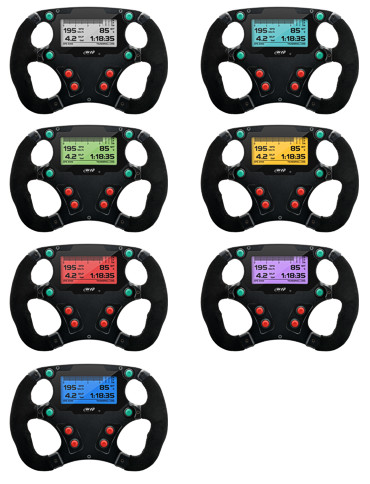

Formula Steering Wheel 3 screen available colors
Individually configurable  LEDs

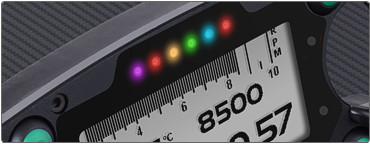

Six RGB shift lights can be configured for each gear, choosing LED color and RPM threshold values which will turn it on/off.
Six RGB shift

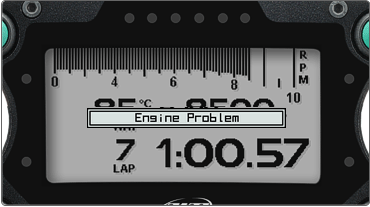

Alarms LEDs are managed in a very flexible way: you can choose the event that generates the alarm, the LED behavior (blinking frequency and color) when the alarm appears and the conditions for its switch-off. A warning message can also be shown.
Alarms
Configuration of Shift lights, alarms and customized data pages is intuitive and immediate using the Race Studio 3 software.
More info
Up to 9 pages showing the data you wish, the way you wish
Formula Steering Wheel 3 swaps among pages showing lap times and data in a 100% customizable way: just choose your data and create your pages displaying up to 8 fields each.

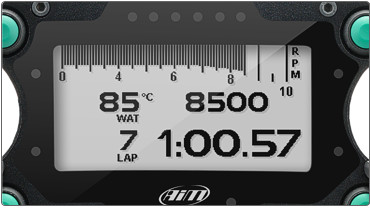

The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and three channels of your choice.
Screenshot 1 Screenshot 2
Custom page with 1 field
Custom page with 2 fields
Screenshot 3 Screenshot 4
Custom page with 3 fields
Custom page with 4 fields
Screenshot 5 Screenshot 6
Custom page with 4 fields + RPM bar
Custom page with 8 fields
Lap times
You can visualize the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).
Screenshot 3 Screenshot 4
Rolling
Static
Screenshot 5
Predictive as difference
vs. Best
Recall your session
highlights

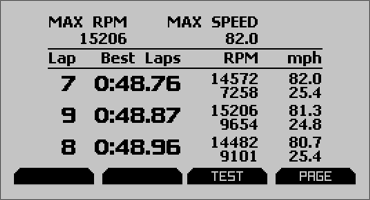

A key-data summary is available at the end of each session: the three best laps of the session with their times, min/max speed and min/max RPMs.
In the following page you can also see a list of all the laps of the session.
Switch buttons for external functions
Formula Steering Wheel 3 also features switch buttons to activate 4 functions among the options available in your car, like speed limiter, traction control, neutral, etc.
Being electrically isolated from the others, each button operates autonomously.

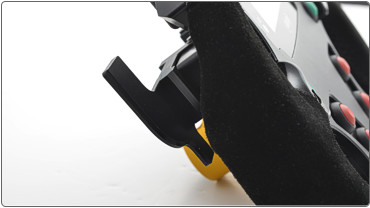

Optional paddle shifts
Formula Steering Wheel 3 features optional paddle shifts.
Robust, comfortable and reliable
Formula Steering Wheel 3 is:
Robust, for its anodized aluminum chassis.
Comfortable and ergonomic: maximum grip is guaranteed by its shape and its finishing with hand-sewn shammy leather.
Reliable: with its backlighted display and waterproof structure it can be used in all conditions of light and weather.
