Connection kits for EVO4
Honda
Kit EVO4 for
Honda CBR 600RR - Honda CBR 1000RR
Cable
Part number V02563290
On Race Studio 2 select:
ECU manufacturer Honda
ECU Model according to the following table:
"HDS_TAB10" "HDS_TAB11"
Honda CBR 1000RR from 2008
Honda CBR 1000RR HRC from 2014
Honda CBR 600RR from 2008
Honda CBR 600RR HRC from 2013
with ECU marked D11
X
X
X
X
Honda CBR 1000RR from 2004 to 2007
Honda CBR 600RR from 2003 to 2007
X
X

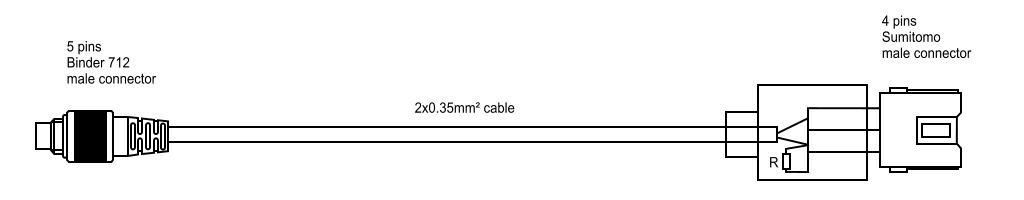

Technical drawing:
User manual
