TECHNICAL SPECIFICATIONS
 ECU connection
CAN, RS232 or K-Line
 Expansions
GPS09c/GPS09c Pro, ACC2, LCU1, SmartyCam 3 Series
 External power
9÷15 V

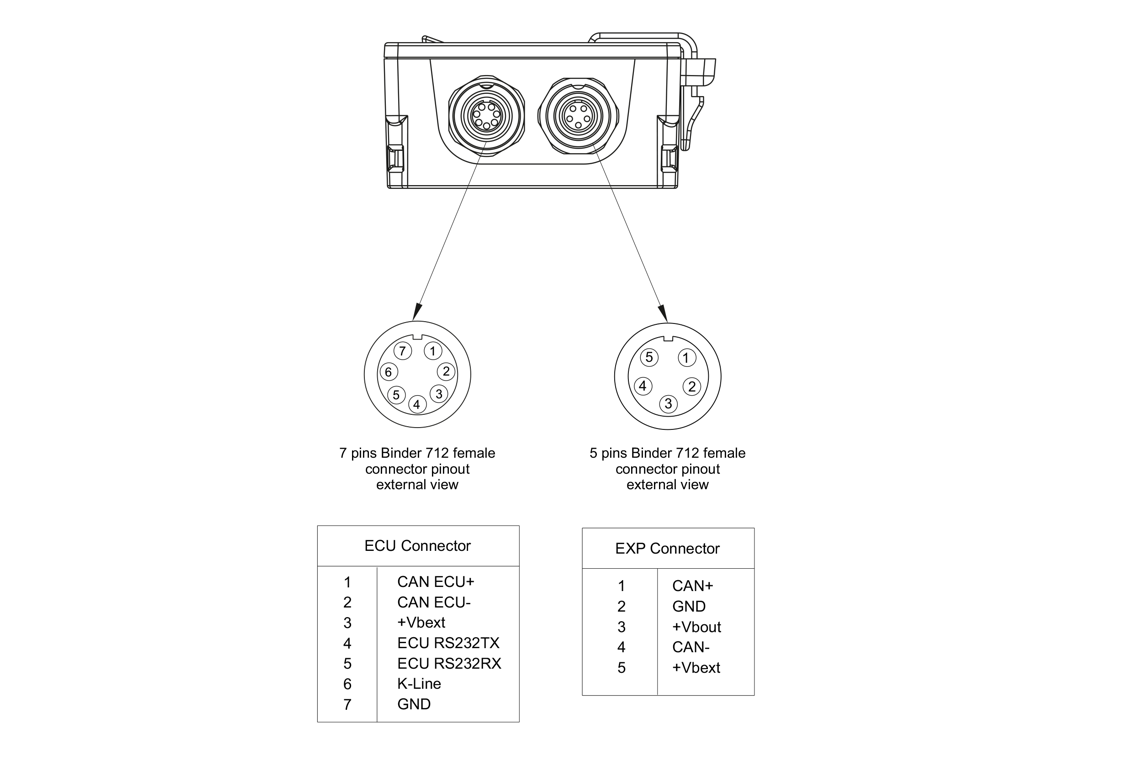

 Connectors
1 Binder 712 5 pins + 1 Binder 712 7 pins + 1 USB Type-C
 Memory
4 GB + removable USB-C memory card
 Material
PA6 GS30%

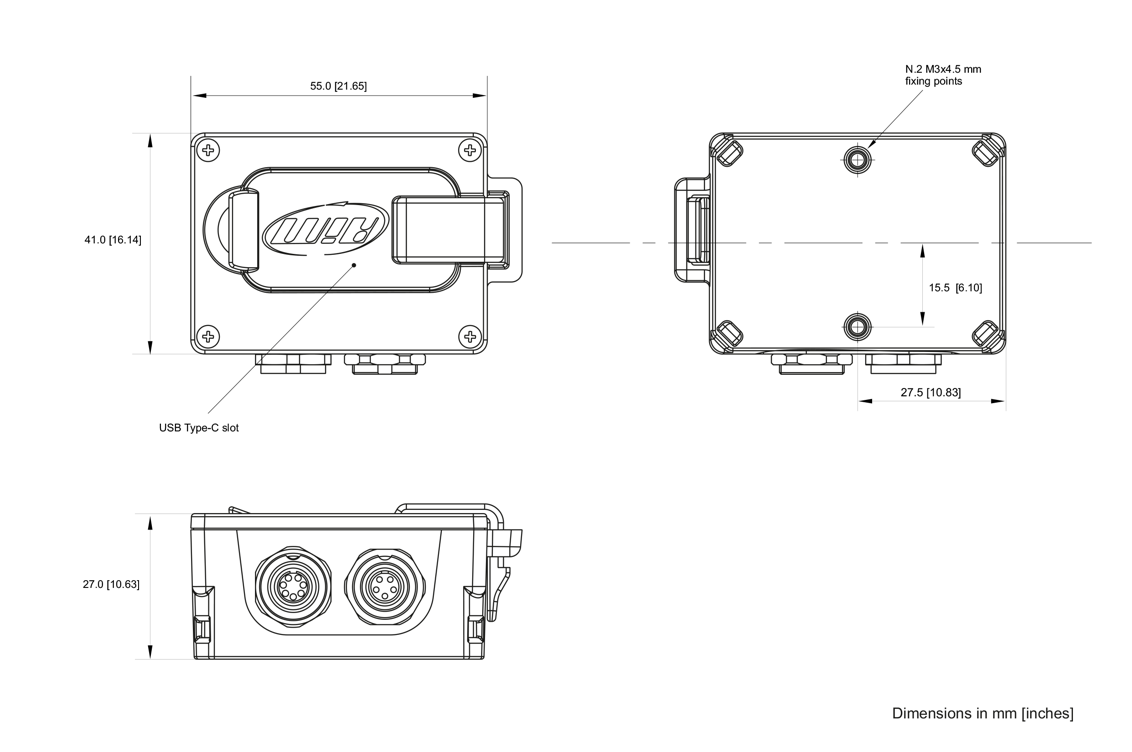

 Dimensions
61.4x44.7x27.2 mm
 Weight
100 g approx.
 Waterproof
IP67
