INSTALLATION KITS FOR APRILIA
< BACK
Aprilia RSV4
Aprilia RSV4 1100
For these Aprilia models:
RSV4 1100
2019-2020
...the following kits are available:
SOLO 2/SOLO 2 DL/XLOG

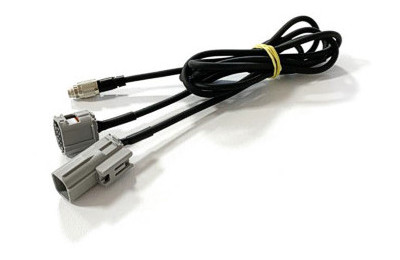

CABLE Part number: V02589090
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4_APRC_V4MP (1)
(1) RS3 only

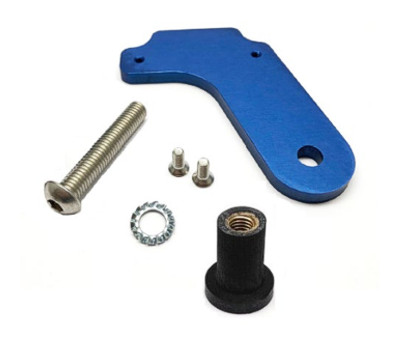

BRACKET Part number: X46KSARSV40
The bracket can be used
with Solo 2 and Solo 2 DL.
The bracket is only compatible with RSV4 original triple clamp.
CABLE + BRACKET Part number: V02589090CS
DOWNLOAD USER MANUAL
EVO4S/ECULOG
CABLE Part number: V02589090
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4_APRC_V4MP (1)
(1) RS3 only
DOWNLOAD USER MANUAL
Please note: For this model/year AiM recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls. AiM Tech srl will not be held responsible for any consequence that may result from the replacement of the original instrumentation cluster.
Aprilia RSV4
Aprilia RSV4/Tuono V4
For these Aprilia models:
RSV4
2017-2018
Tuono V4
2017-2020
...the following cables are available:
SOLO 2 DL/XLOG
CABLE Part number: V02589090
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4_APRC_V4MP (1)
(1) RS3 only
DOWNLOAD USER MANUAL

EVO4S/ECULOG
CABLE Part number: V02589090
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4_APRC_V4MP (1)
(1) RS3 only
DOWNLOAD USER MANUAL
Please note: For this model/year AiM recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls. AiM Tech srl will not be held responsible for any consequence that may result from the replacement of the original instrumentation cluster.
Aprilia RSV4
Aprilia RSV4/Tuono V4
For these Aprilia models:
RSV4 MY2021
2021-2022
RSV4 MY2023
from 2023
Tuono V4 MY 2021
2021-2022
Tuono V4 MY 2023
from 2023
...the following kits are available:
SOLO 2/SOLO 2 DL/XLOG

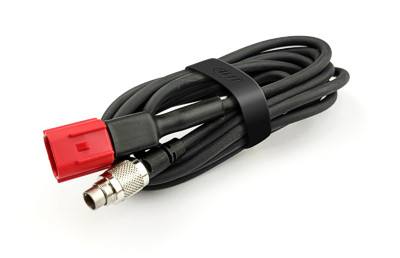

CABLE Part number: V02589130
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4 EU5 (1)
(1) RS3 only
BRACKET Part number: X46KSARSV40
The bracket can be used
with Solo 2 and Solo 2 DL.
The bracket kit does not fit Aprilia Tuono V4.
CABLE + BRACKET Part number: V02589130CSRSV4
DOWNLOAD USER MANUAL

EVO4S/ECULOG
CABLE Part number: V02589130
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4 EU5 (1)
(1) RS3 only
DOWNLOAD USER MANUAL
Please note: For this model/year AiM recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls. AiM Tech srl will not be held responsible for any consequence that may result from the replacement of the original instrumentation cluster.
Aprilia RSV4
Aprilia RS660
For these Aprilia models:
RS660
from 2020
...the following kits are available:
SOLO 2/SOLO 2 DL/XLOG
CABLE Part number: V02589130
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4 EU5 (1)
(1) RS3 only
BRACKET Part number: X46KSARSV40
The bracket can be used
with Solo 2 and Solo 2 DL.
CABLE + BRACKET Part number: V02589130CSRSV4
DOWNLOAD USER MANUAL

EVO4S/ECULOG
CABLE Part number: V02589130
On RaceStudio 3 select:
ECU manuf. APRILIA
ECU model RSV4 EU5 (1)
(1) RS3 only
DOWNLOAD USER MANUAL
Please note: For this model/year AiM recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls. AiM Tech srl will not be held responsible for any consequence that may result from the replacement of the original instrumentation cluster.
