| TECHNICAL SPECIFICATIONS |
|
|
|

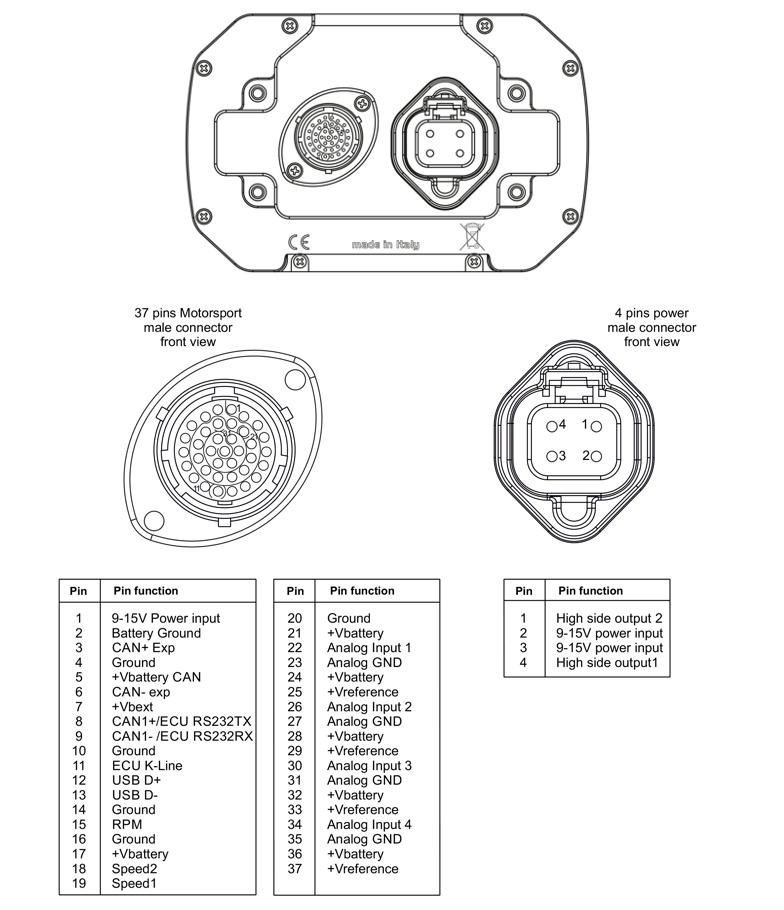

| Pinout |
|
|
| Display resolution |
268 x 128 pixels |
| Backlight |
7 configurable RGB colors |
| Ambient light sensor |
Yes |
| Shift lights |
5 configurable RGB LEDs |
| Alarm LEDs |
2 configurable RGB LEDs |
| CAN connections |
2 |
| ECU connections |
CAN, RS232 or K-Line |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro |
| GPS |
Integrated |
| External modules |
Lambda Controller, ACC3, GPS09c, SmartyCam 3 Series |
| Analog inputs |
4 fully configurable, max 500 Hz each |
| Digital inputs |
2 speed inputs
Low level coil RPM input, 0-5 V square wave |
| Digital outputs |
2 high-side |
| Wi-Fi connection |
Yes |
| Internal memory |
4 GB |
| Body |
PA6 GS30% |
| Pushbuttons |
Metallic |
| Connectors |
37 pins Motorsport connector + 4 pins power connector |

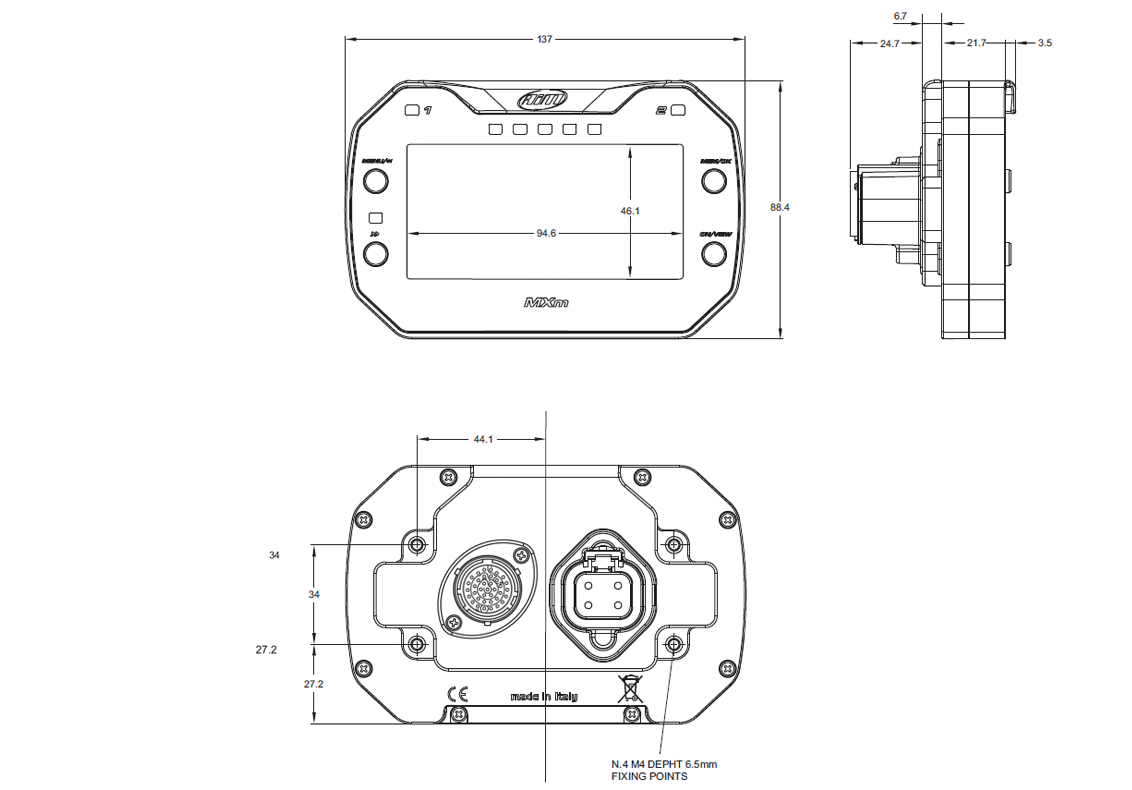

| Dimensions |
137x88.4x31.9 mm |
| Weight |
330 g |
| Waterproof |
IP65 |
|
|

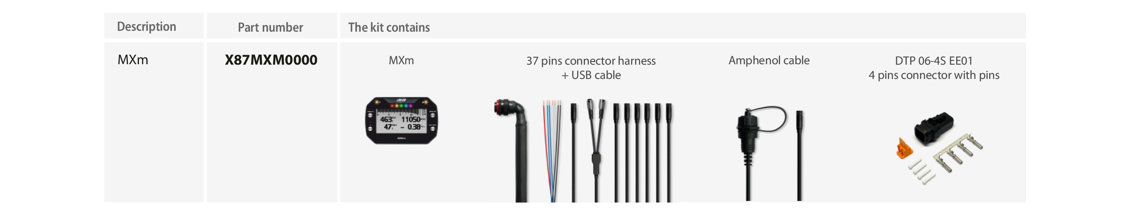

| IN THE BOX |
|
 |
|
|
|
