GPS & TRACK MANAGEMENT
MXm and MXq can be used on track thanks to the integrated GPS.
This is used for:
Lap time calculation
Speed calculation
Predictive lap time calculation
Optionally, a GPS09c can also be connected as an external device.
To calculate these data the system needs to know the start/finish line coordinates of the racetrack you are racing on.

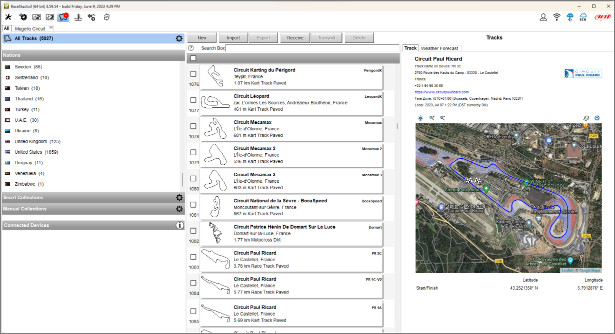

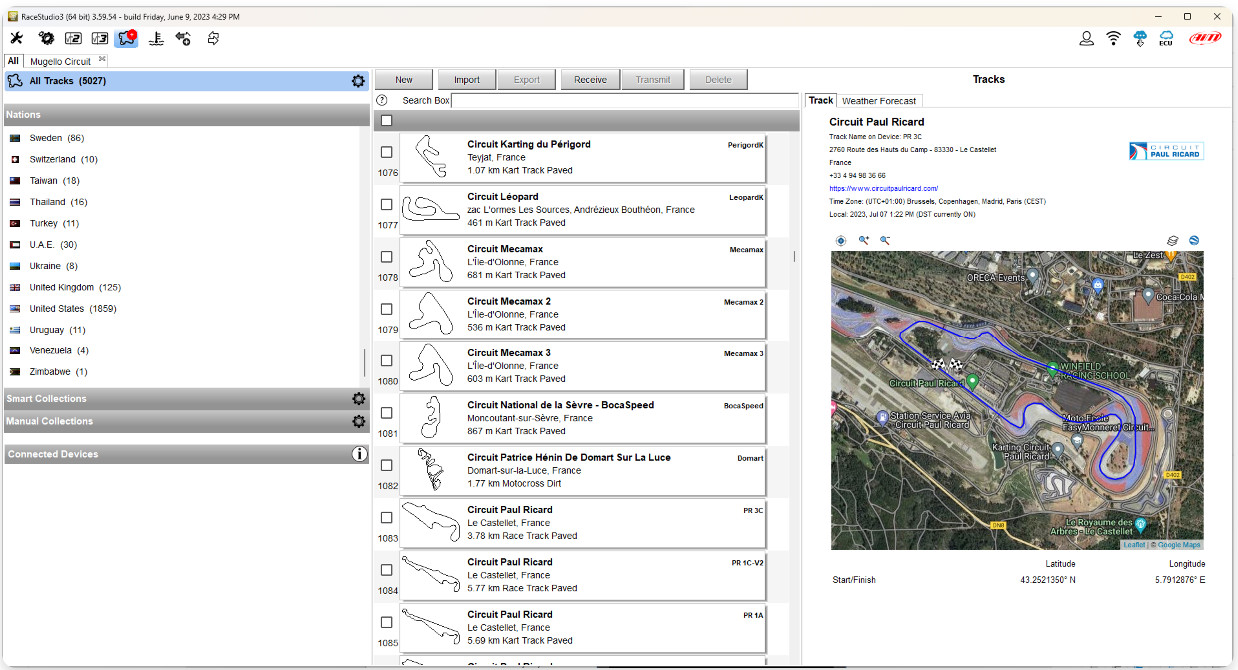

MXm and MXqs come with a long list of the world main tracks, constantly updated by our technicians and automatically loaded to your PC when you run RaceStudio 3 software and a connection to the Internet is available.
TRACK SELECTION MODE
Automatic
MXm and MXq automatically recognize the track you are running on, loads the start/finish line and the possible splits coordinates and calculates lap and split times without optical/magnetic receiver. This is the best mode in most cases.
Manual
Allows to manually select the track from the internal database. This mode is to be preferred when multiple track configurations are available nearby. In this case MXm/MXq would anyway recognize the track but would need at least one complete track lap.
You can scroll the list of available tracks choosing among these options:
nearest: shows only tracks in a 10 km distance
all: shows all tracks stored in the system in alphabetical order

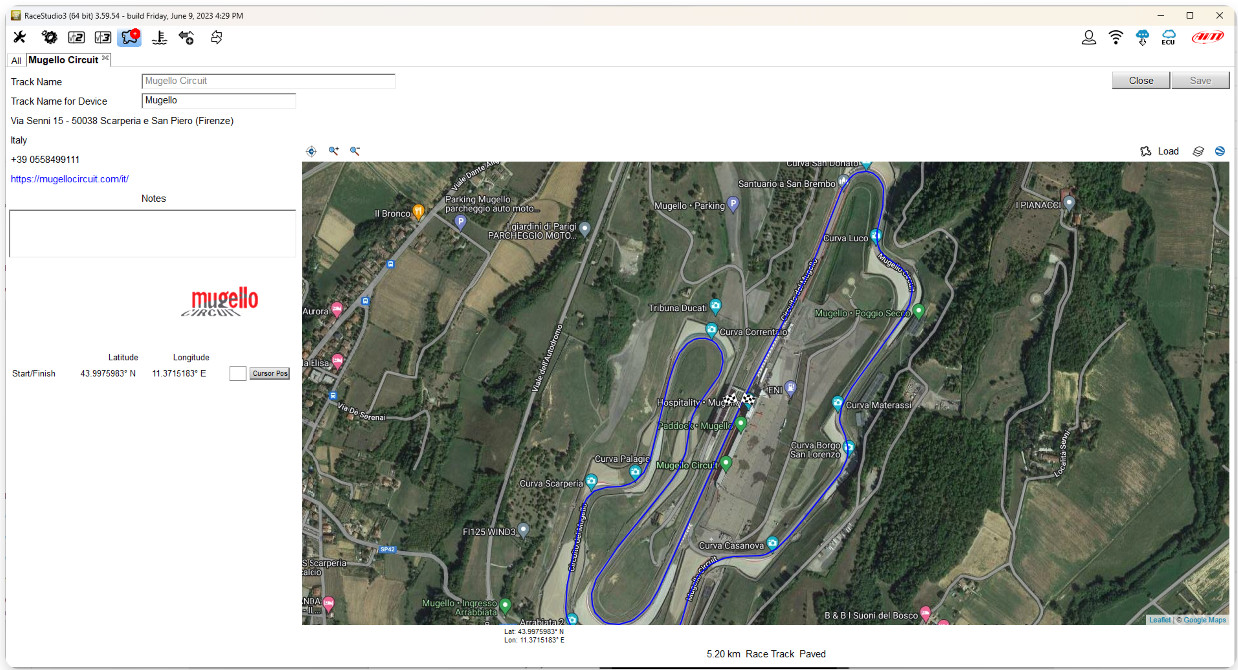

custom: shows only the tracks you have previously created with RaceStudio 3 software
