MXP 1.3 Strada
The 6'' colour TFT dash for road use
MX Series
MXP 1.3 Strada belongs to the MX Family, a complete range of TFT Dash & Loggers designed for Motorsport from AiM. Click here to explore the main features of the MX Series.
USER MANUALS, PICTURES & TECH SHEETS
TECHNICAL SPECIFICATIONS
 Display
6” TFT
 Resolution
800x480 pixels
 Contrast
600:1
 Brightness
700cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Alarm LEDs
6 RGB freely configurable
 Shift lights
10 integrated freely configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN, RS232 or K-Line
 ECU compatibility
+ 2,000 industry leading ECUs

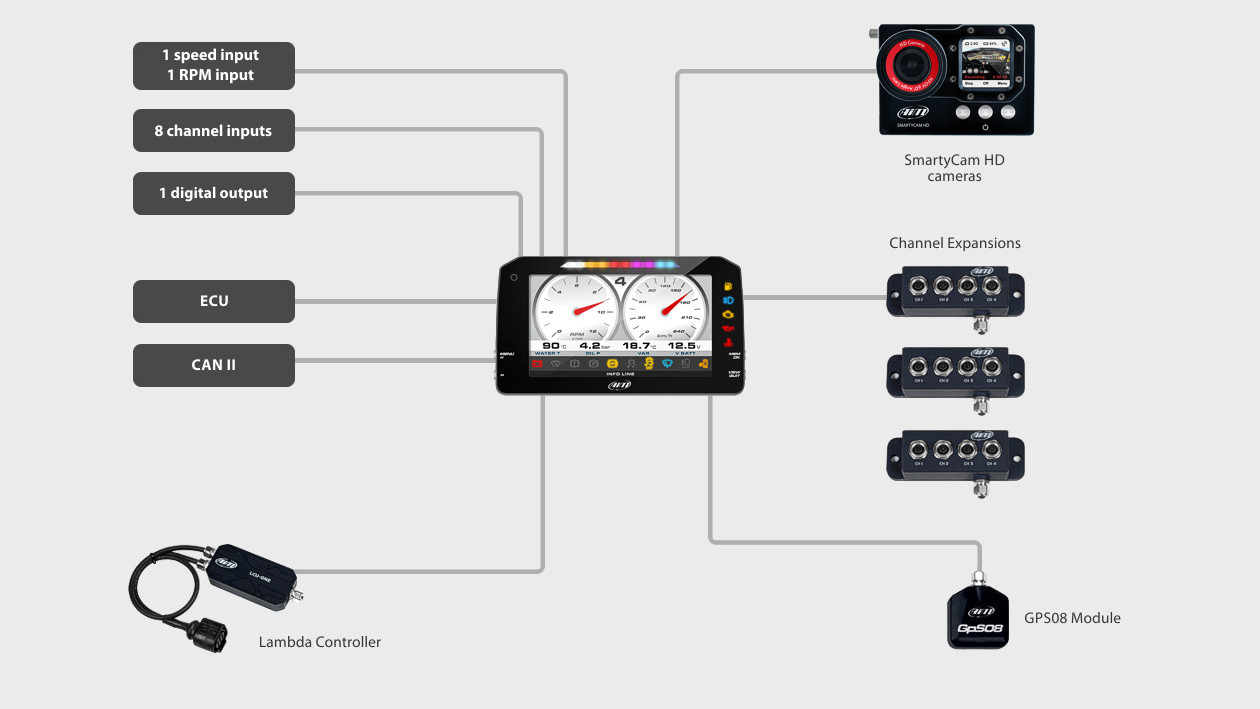

 Expansion CAN connection
GPS Module, Channel Expansion, TC Hub, Lambda Controller,
SmartyCam 3 Series
 Analog/digital inputs
8 fully configurable, max 500 Hz each
 Digital inputs
4 Speed inputs, lap signal, coil RPM input
 Digital outputs
2 (1 A max each)
 Second CAN
Yes
 Wi-Fi connection
Yes
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
Metallic
 Connectors
2 Motorsport connectors + 1 Binder connector
 Power consumption
400 mA
 Dimensions
169.4x97x23 mm
 Weight
530 g
 Waterproof
IP67
AVAILABLE KITS
All kits include: MXP 1.3 Strada, USB cable, 14 pins CAN harness or OBD CAN+K.

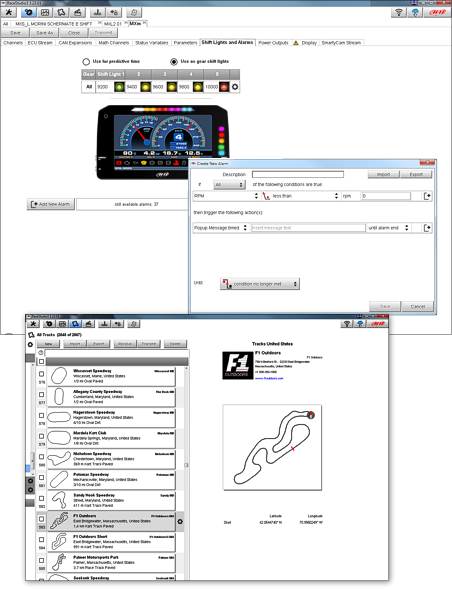

User manual & Race Studio 3 software freely downloadable here.
MXP 1.3 Strada + UBS cable + 14 pins CAN harness (ECU) XA5MXPSTRA010
MXP 1.3 Strada + UBS cable + 14 pins OBD harness CAN+K (ECU) XA5MXPSTRA020

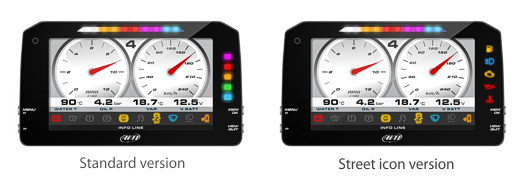

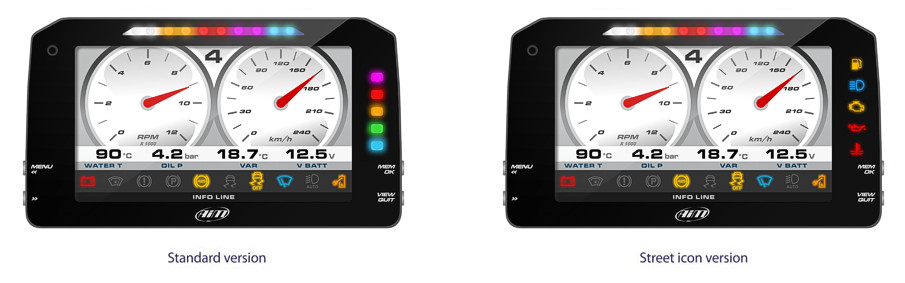

MXP 1.3 Strada Street icons version + UBS cable + 14 pins CAN harness (ECU) XA5MXPSTRI010
MXP 1.3 Strada Street icons version + UBS cable + 14 pins OBD harness CAN+K (ECU) XA5MXPSTRI020
ACCESSORIES
Strada Logger See dedicated page
23 pins AMP connector wiring - Standard version V02573330
Infrared optical receiver 90 cm length X41RX19090
Infrared optical receiver 3 m length X41RX19300
Mirror camera XB1ZCAMHD00
Single RearMaster mirror camera patch cable V02573390
Double RearMaster mirror camera patch cable V02573400
Single AiM mirror camera patch cable V02551170
Double AiM mirror camera patch cable V02573410
SPARE PARTS
USB cable V02573200
14 pins standard harness V02573320
14 pins OBD harness V02573340
14 pins connector + contacts 5CND7762732 + 5CT0770520
23 pins connector + contacts 5CND7706802 + 5CT0770520
