MX2E |
|
RIDE LIGHTER, READ CLEARLY |
|
GO FASTER |
|
The brand new Plug & Play Dash Logger kit
specifically designed for Lotus Elise/Exige |
|
Model years 2004-2007 (version with airbag only)*
2008-2010 and 2011-2020
(only compatible with Toyota engines) |
|
|
|
|
|
|
|
|
|
Full Plug & Play Dash Logger Kit |
|
Featuring an ad-hoc engineered cluster in the kit, with four integrated buttons, MX2E is designed to be easily installed on Lotus Elise/Exige (models are shown above) and it’s fully Plug & Play. |
|
|
|
|
|
|
|
|
| |
|

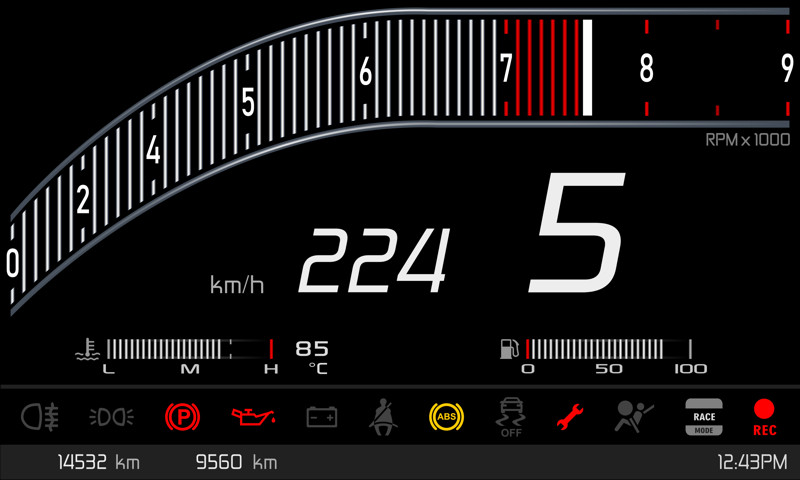

High contrast 6” TFT display 800x480 pixels |
|
|
18 integrated LEDS
(10 shiftlights, 6 status information LEDs, 2 turn indicators) |
|
|
14 digital switch inputs |
|
|
|
4 integrated buttons
in cluster |
|
|
CAN bus ECU interface |
|
|
Rear camera input |
|
|
Wi-Fi connectivity |
|
|
|
|
|
|
|
|
|
|
|
Integrated Lap Time |
|
Thanks to the integrated GPS
and huge track database. |
|
|
|
|
|
| After the test |
|
... you may look summarized data directly on your dash. |
|
|
|
|
|
|
|
Or you can send
all recorded data to your PC
through Wi-Fi
for a professional analysis. |
|
|
|
|
| Not enough? |
|
| You may expand your MX2E capabilities connecting : |
|
Lambda controller
Wide band Lambda controller LCU-One, with Bosch LSU
4.9 probe, providing all Air/Fuel data and lambda values,
allows to verify the behavior of your ECU. |
|
 |
|
|
Channel Expansion
It permits to add four 0-5 Volt analog channels for pressure,
temperature sensors and potentiometers. |
|
 |
|
|
|
|
|
|
|
|
|
Optional inputs for rear camera |
|
Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management. |
|
|
Optical Format 1/4 inch Color CMOS |
|
|
TV system NTSC |
|
|
Pixel Array 648x488 |
|
|
Image area 3.63mm - 2.73mm |
|
|
Frame rate NTSC: 60 filed/sec |
|
|
Temperature -30°/+80° |
|
|
|
|
|
