SMARTYCAM 3 SPORT HOME
TECHNICAL SPECS        SPARE PARTS        DOCUMENTATION        PICTURES
TECHNICAL SPECIFICATIONS
 Video format
H.264 1,920x1,080 pixels @ 30 fps
 Display resolution
128x128 pixels
 Lens
Low distortion camera lens
 CMOS Sensor
Global shutter
 Field of view
67° or 84°
 External power
9-15 V
 Supported MicroSD Card (not included)
Up to 2TB
 Connector
1 Binder 712 female
 Working temperature range
-10°C/+50°C
 Auto Power ON
Yes
 Auto Power OFF
Yes
 Auto Start/Stop Recording
Yes
 Body
Coated aluminum
 Dimensions
79.9x54x46.5 mm
 Weight
200 g, battery included
 Waterproof
IP65
IN THE BOX

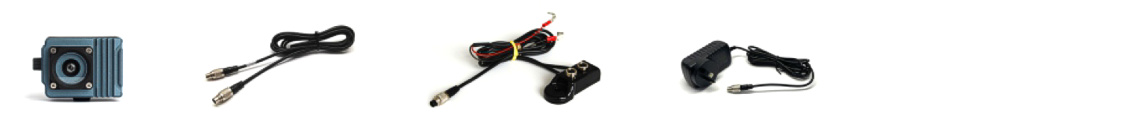

KIT TYPE 1:
SmartyCam 3 Sport with 67 or 84 lens, 2 or 4 m CAN cable, Battery charger with AC adapter.

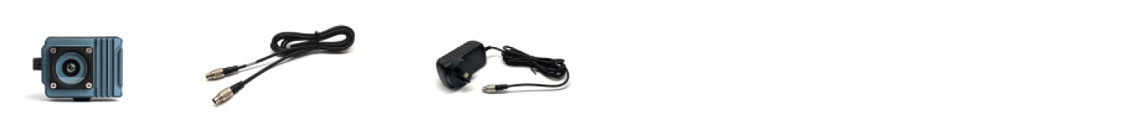

KIT TYPE 2:
SmartyCam 3 Sport with 67° or 84° lens, 2 or 4 m CAN cable, Data Hub 2 ways, Battery charger with AC adapter.
For further info see the technical sheet in the Documentation page.
