| DOCUMENTATION |
|
|
|
| TECHNICAL SPECIFICATIONS |
| |

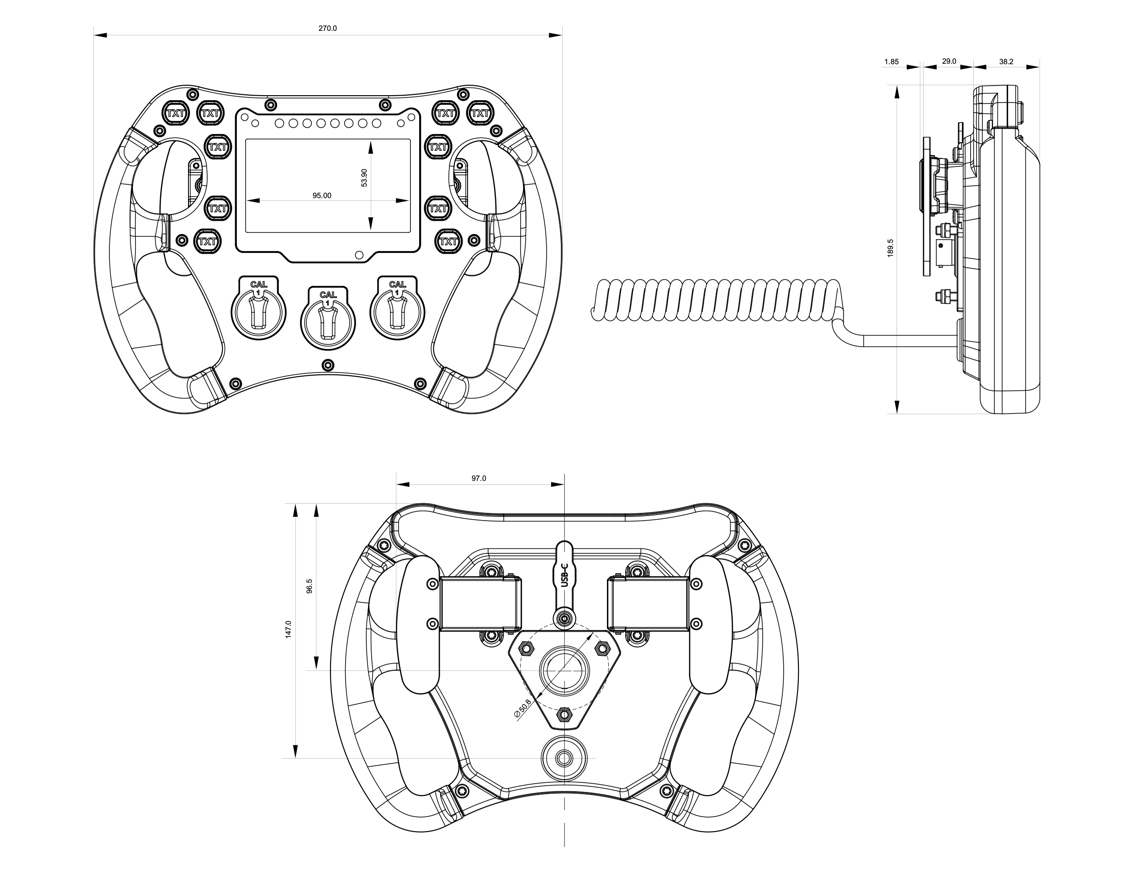

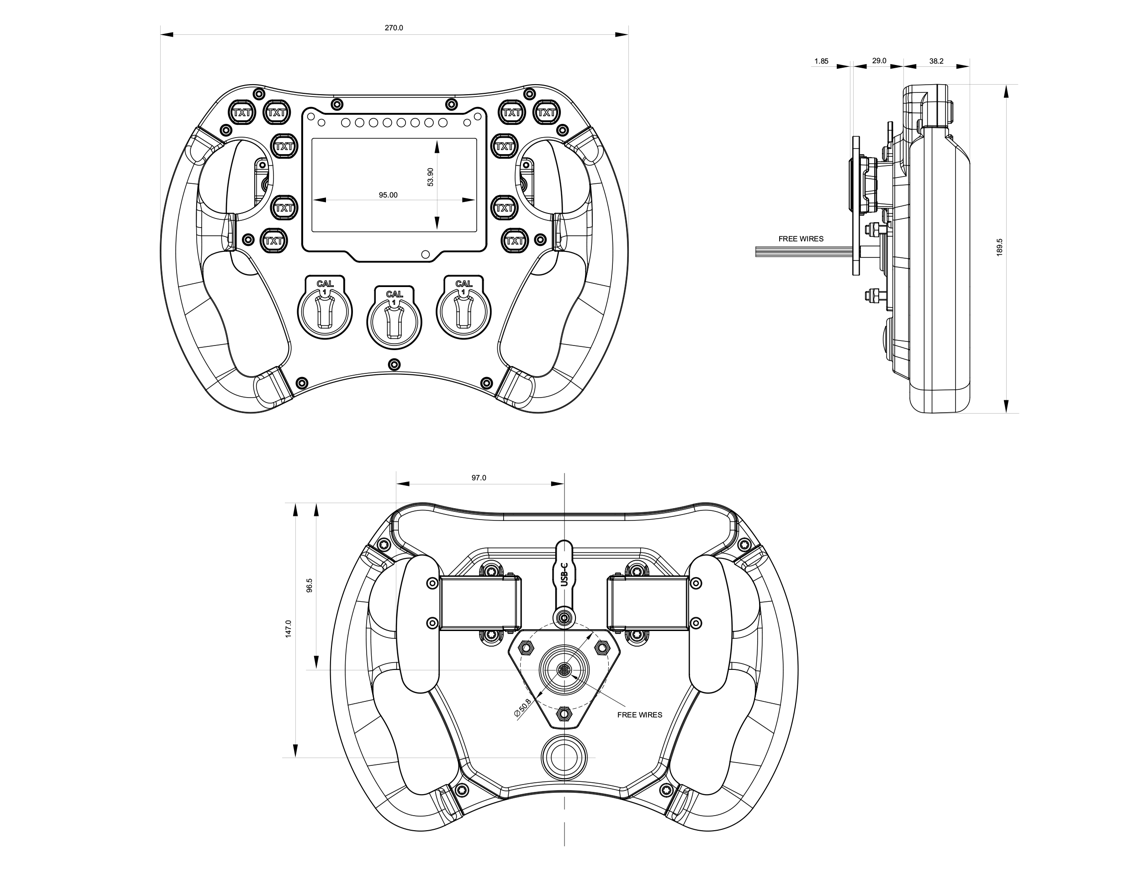

| WS4 270 |
|
| |
| Display |
4.3” TFT |
| Resolution |
800x480 pixels |
| Contrast |
800:1 |
| Brightness |
800 cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm display icons |
Yes, freely configurable |
| Shift lights |
8 configurable RGB LEDs |
| Alarm LEDs |
4 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN |
| ECU compatibility |
+ 1,000 industry leading ECUs |
| Expansion CAN connection |
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD,
RIO02, GS Dash, Memory Module |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Pushbuttons |
10 pushbuttons + 3 rotary switches (all with RGB backlights) |

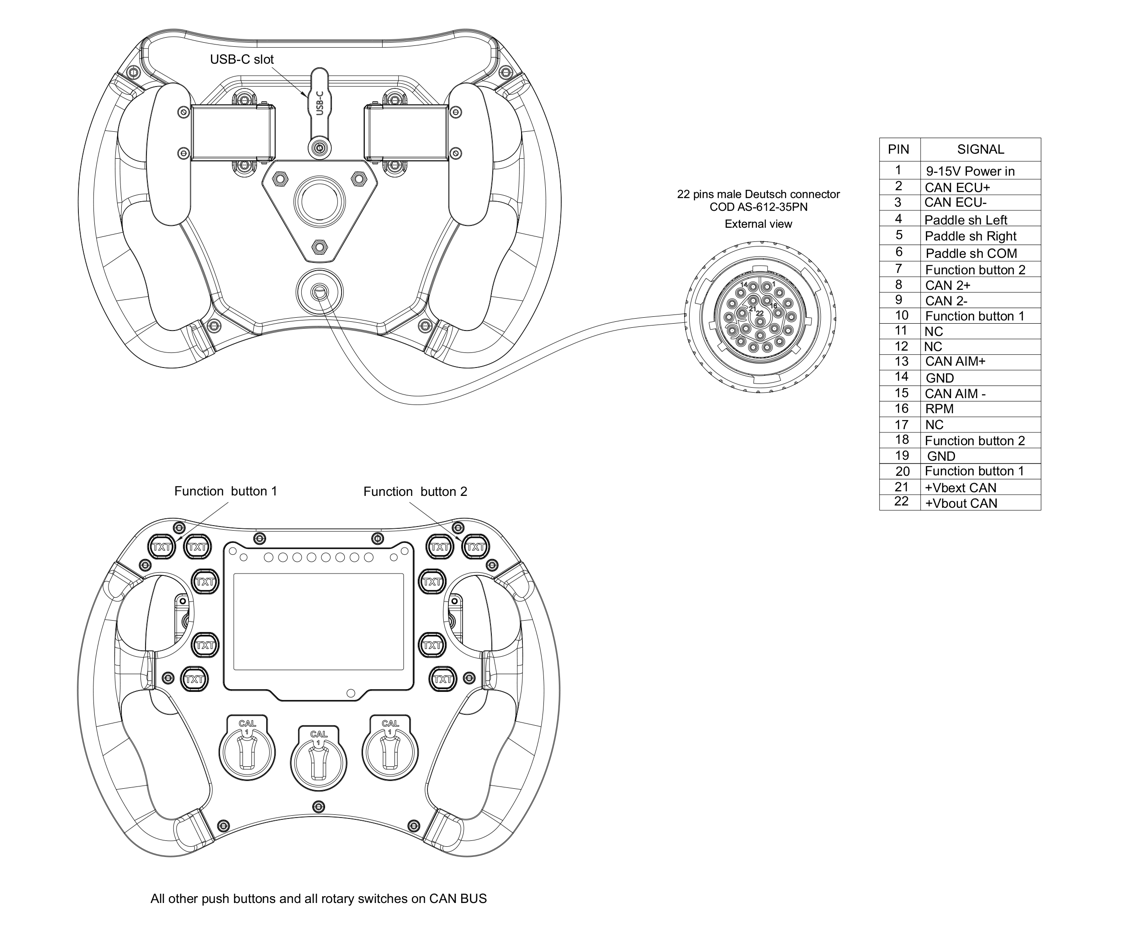

| Connectors |
1 Deutsch Autosport 22 pin male connector |
| Dimensions |
270 x 183.5 x 42.6 mm |
| Weight |
2,400 g |
| Power consumption |
500 mA |
| Waterproof |
IP65 |
|
| |
| WS4 280 |
|
| |
| Display |
4.3” TFT |
| Resolution |
800x480 pixels |
| Contrast |
800:1 |
| Brightness |
800 cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm display icons |
Yes, freely configurable |
| Shift lights |
8 configurable RGB LEDs |
| Alarm LEDs |
4 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN |
| ECU compatibility |
+ 1,000 industry leading ECUs |
| Expansion CAN connection |
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD,
RIO02, GS Dash, Memory Module |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Pushbuttons |
10 pushbuttons + 3 rotary switches (all with RGB backlights) |
| Connectors |
1 Deutsch Autosport 22 pin male connector |
| Dimensions |
280 x 183.5 x 42.6 mm |
| Weight |
2,400 g |
| Power consumption |
500 mA |
| Waterproof |
IP65 |
|
| |
| WS4 320 |
|
| |
| Display |
5” TFT |
| Resolution |
800x480 pixels |
| Contrast |
800:1 |
| Brightness |
800 cd/m2 - 1,200 Lumen |
| Ambient light sensor |
Yes |
| Alarm display icons |
Yes, freely configurable |
| Shift lights |
8 configurable RGB LEDs |
| Alarm LEDs |
4 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN |
| ECU compatibility |
+ 1,000 industry leading ECUs |
| Expansion CAN connection |
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD,
RIO02, GS Dash, Memory Module |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Pushbuttons |
10 pushbuttons + 3 rotary switches (all with RGB backlights) |
| Connectors |
1 Deutsch Autosport 22 pin male connector |
| Dimensions |
320 x 183.5 x 42.5 mm |
| Weight |
2,600 g |
| Power consumption |
500 mA |
| Waterproof |
IP65 |
|
| |
| WS4 350 |
|
| |
| Display |
5” TFT |
| Resolution |
800x480 pixels |
| Contrast |
800:1 |
| Brightness |
800 cd/m2 - 1,200 Lumen |
| Ambient light sensor |
Yes |
| Alarm display icons |
Yes, freely configurable |
| Shift lights |
8 configurable RGB LEDs |
| Alarm LEDs |
4 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN |
| ECU compatibility |
+ 1,000 industry leading ECUs |
| Expansion CAN connection |
GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD,
RIO02, GS Dash, Memory Module |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Pushbuttons |
10 pushbuttons + 3 rotary switches (all with RGB backlights) |
| Connectors |
1 Deutsch Autosport 22 pin male connector |
| Dimensions |
350 x 183.5 x 42.5 mm |
| Weight |
2,600 g |
| Power consumption |
500 mA |
| Waterproof |
IP65 |
|
| |
|
|
|
