TECHNICAL SPECIFICATIONS
 Display
7" TFT
 Resolution
800x480 pixels
 Contrast
1,000:1
 Brightness
700cd/m2 - 1,100 Lumen
 Ambient light sensor
Yes
 Alarm LEDs
8 RGB freely configurable
 Shift lights
10 integrated freely configurable RGB LEDs
 CAN connections
3
 ECU connections
CAN, RS232 or K-Line
 ECU compatibility
+ 1,000 industry leading ECUs
 Expansion CAN connection
GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD
 Analog inputs
8 fully configurable, max 1,000 Hz each
 Digital inputs
4 Speed inputs, lap signal, coil RPM input
 Digital outputs
2 (1 A max each)
 Second CAN
Yes
 Wi-Fi connection
Yes
 Accelerometer
Internal Three-axial ± 5G + Three-axial Gyroscope
+ 3 axis magnetometer
 Internal memory
4 GB
 Body
Anodized Aluminum
 Pushbuttons
Metallic

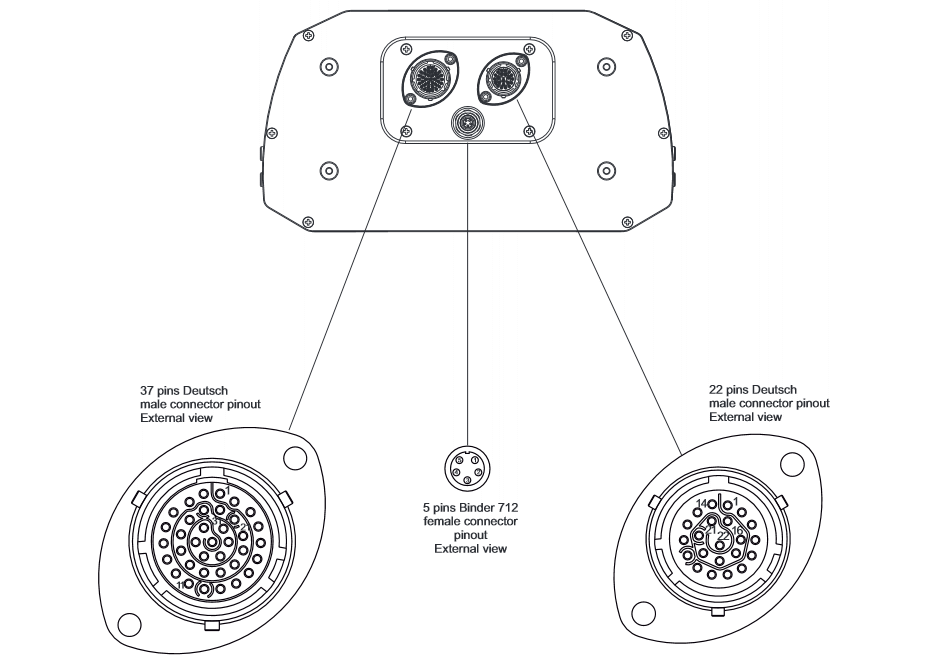

 Connectors
2 Motorsport connectors + 1 Binder connector
 Power consumption
400 mA
 Dimensions
237x127.6x26 mm
 Weight
950 g
 Waterproof
IP65
IN THE BOX
MXG 1.2, 37 pins standard harness, GPS Module with cable, USB cable, Software installation CD.
