| TECHNICAL SPECIFICATIONS |
|
|
|
|
|
| Display |
6” TFT |
| Resolution |
800x480 pixels |
| Contrast |
600:1 |
| Brightness |
700cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm display icons |
Yes, freely configurable |
| Alarm LEDs |
5 configurable RGB LEDs |
| Shift lights |
10 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN, RS232 or K-Line |
| ECU compatibility |
2,000+ industry leading ECUs |

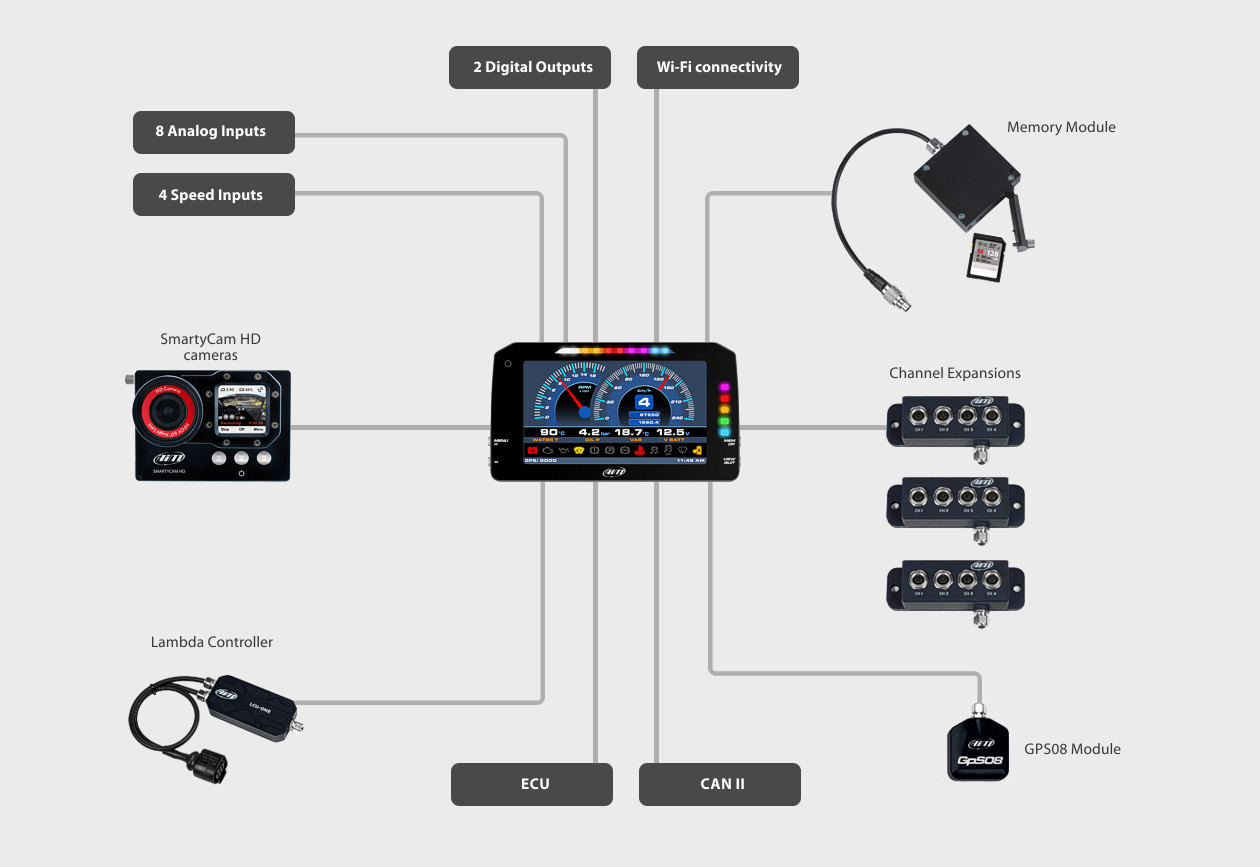

| Expansion CAN connection |
GPS09c, Channel Expansion, TC Hub,
Lambda Controller, SmartyCam 3 Series |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz |
| Analog inputs |
8 fully configurable, max 500 Hz each |
| Digital inputs |
4 Speed inputs, lap signal, coil RPM input |
| Digital outputs |
2 (1 A max each) |
| Second CAN |
Yes |
| Wi-Fi connection |
Yes |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Pushbuttons |
Metallic |
| Connectors |
2 Motorsport connectors + 1 Binder connector |
| Power consumption |
400 mA |
| Dimensions |
189.6 x 106.4 x 24.9 mm |
| Weight |
640 g |
| Waterproof |
IP67 |
|
|
|
|
|
|
|
| AVAILABLE KITS |
|
|
|
 |
|
All kits include: MXP 1.3, GPS09c with cable, USB cable, 37 pins standard harness.

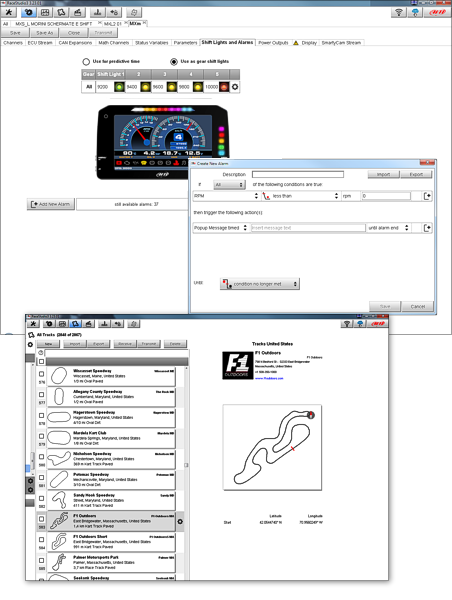

User manual & Race Studio 3 software freely downloadable here. |
|
| MXP 1.3 + 1.3 m GPS09c + USB cable + 37 pins standard harness |
XA6MXPA13G1 |
|
| MXP 1.3 + 2 m GPS09c + USB cable + 37 pins standard harness |
XA6MXPA20G1 |
|
| MXP 1.3 + 4 m GPS09c + USB cable + 37 pins standard harness |
XA6MXPA40G1 |
|
| MXP 1.3 + 2 m GPS09c Roof version + USB cable + 37 pins standard harness |
XA6MXPA20R1 |
|
| MXP 1.3 + 4 m GPS09c Roof version + USB cable + 37 pins standard harness |
XA6MXPA40R1 |
|
|
|
| ACCESSORIES |
|
|
|
| 22 pins harness |
V02573020 |
|
| 22 pin female Deutsch connector |
5CN822F00 |
|
| 37 pin female Deutsch connector |
5CN837F00 |
|
| Mirror camera |
XB1ZCAMHD00 |
|
| Single RearMaster mirror camera patch cable |
V02573390 |
|
| Double RearMaster mirror camera patch cable |
V02573400 |
|
| Single AiM mirror camera patch cable |
V02551170 |
|
| Double AiM mirror camera patch cable |
V02573410 |
|
|
|
| SPARE PARTS |
|
|
|
| USB cable |
V02573200 |
|
| 37 pins standard harness |
V02573010 |
|
|
|
|
|
