From 1994 to the present, MyChron has been a faithful companion for drivers and teams seeking ever-higher performance.
Today, the sixt generation of MyChron — with the integration of increasingly advanced technologies, such as high-precision GPS, 6-Axis IMU, Bluetooth connectivity, the second CAN for additional sensors and the long lasting battery — is transforming the new MyChron6 into a powerful data analysis center, capable of providing increasingly accurate and detailed information from different sources.

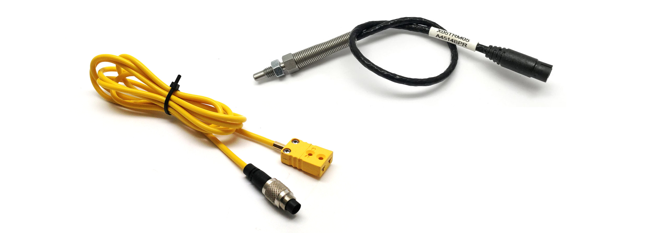

Dedicated to the most demanding karting teams or drivers, MyChron6 2T manages two temperature
values acquired by exhaust gas, cylinder head or water temperature sensors.
Not just a GPS laptimer
MyChron6 stands to be a complete data center for your kart.
It samples and show:
Lap time
Rolling lap time
Spit/sector time
Predictive
Delta time (+/- Best)
Lap number
Speed and RPM
Temperature values
IS THIS YOUR BEST LAP? MULTIFUNCTIONAL LEDS WILL TELL YOU
Five individually configurable RGB LEDs
You will choose color and values thresholds for their activation.
In addition, they can be configure to show your best lap/split time,
monitor RPM level and even indicate the right moment for gear shift.
Two alarm RGB configurable LEDs
Customize alarm LEDs behavior based
on water temperature or other parameters.
Ambient light sensor
Dedicated pages
and excellent screen clarity
MyChron6 features a wide 320x136 pixels graphical display to have all the data under control.
With the new dedicated pages layout, split times, overall delta time and heart rate will be easily and promptly monitored.
The incorporated light sensor makes brightness and contrast ideal in all light conditions.
MyChron6 display will be always readable and clear even in the most intense phases of the competition.
The screen features a new page layout with delta histogram per sector time and delta time from reference lap.
The screen can be backlited in one of the eight available colors:
Bluetooth connectivity
Experience seamless connectivity with the advanced Bluetooth module of MyChron6.
If you wish to measure your heart rate while racing, simply connect via Bluetooth the heart rate monitor to your MyChron6 and look the data on-screen or download them after the race.
Compatible with the most common heart rate monitor on the market.
Wi-Fi
Easy wireless data download via Wi-Fi:
no need for data keys or PC connections.
Update your device over Wi-Fi to ensure
it always has the latest features
and improvements.
Second CAN
The second CAN is dedicated to
connect external modules requiring
CAN communication protocols.
Dedicated storage
The USB-C connector, in addition to allowing you to charge your logger, permits to store all your data in the optional massive 16 GB dedicated memory module.
3D accelerations and gyro
The 6-axis 100 Hz Inertial Measurement
Unit (IMU) measures acceleration in the
forward-backward, up-down and right-left
directions and the angular velocity in the
kart's pitch, roll and yaw directions, then
calculates and relays that information in
real-time to MyChron6 to control the
engine and the behavior of the chassis
to assist the rider.
Improved GPS
MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.
Track database
MyChron6 can recognize the finish line coordinates of thousands of tracks all over the world.
Opening RaceStudio 3 you will see the huge list of tracks included in the AiM database, sorted by nation, circuit and surface type: you will be able to create your own collection, adding/removing tracks.
Should your home track be missing, after one lap its coordinates will be automatically detected by MyChron6 GPS and if you wish - once downloaded onto your PC - will be sent to AiM software Dept. to be included in the database.
(Click on the screenshot to enlarge it)
Up to 20 working hours
Thanks to the new large high-performance battery and low-consumption electronics with up to 20 hours of autonomy, MyChron6 will be your reliable companion on the track without the need for recharging.
DATA RECALL AND RACESTUDIO 3 ANALYSIS
Data recall
At the end of the test you can recall sampled data.
Data recall is available in two types of race, road
and oval (oval type is only available in US version).
You'll have all the information of the tests taken,
with different pages and dedicated views, on best
lap times, best splits, best rolling lap time and
the best theoretical lap, RPM graph and
histograms.

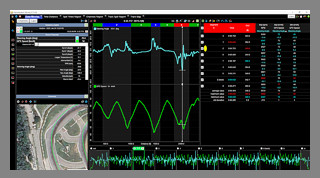

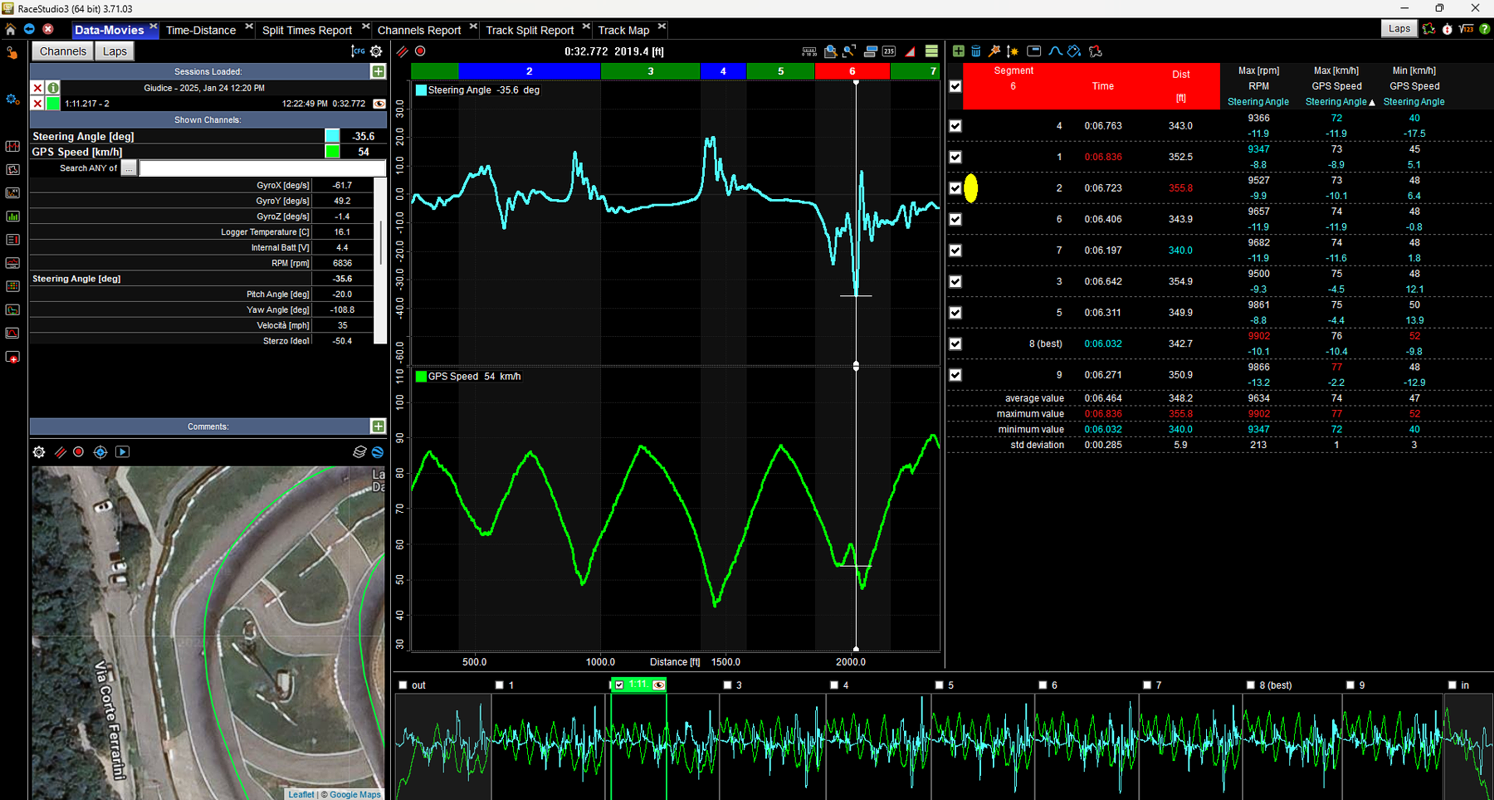

RaceStudio 3 Analysis
Your data can be downloaded (via cable, Wi-Fi or Mini USB storage) and analysed in depth on your PC with RaceStudio 3 software: charts, graphs and histograms will help you to understand your performance, finding out what needs to be improved.
You can compare the data that cannot be show on displays, with a lot of dedicated views like track split report, channel report, SmartyCam videos and so on, comparing also different sessions.
(Click on the screenshots to enlarge them)
RaceStudio 3
always with you
Now RaceStudio 3 is also available on your smartphone for managing the following
features on your MyChron6/2T:
Data analysis
Online data visualization
Sensors calibration
Tracks management
Firmware update
Data download and cloud storage
The brand new cross platform (Apple iOS® and Google Android®) application is designed to have the main features of RaceStudio 3
at your fingertips, allowing you, through the Wi-Fi connection, to manage your AiM devices, monitor all the channels you want, allowing you to analyze the values logged during track sessions through detailed maps and graphs.

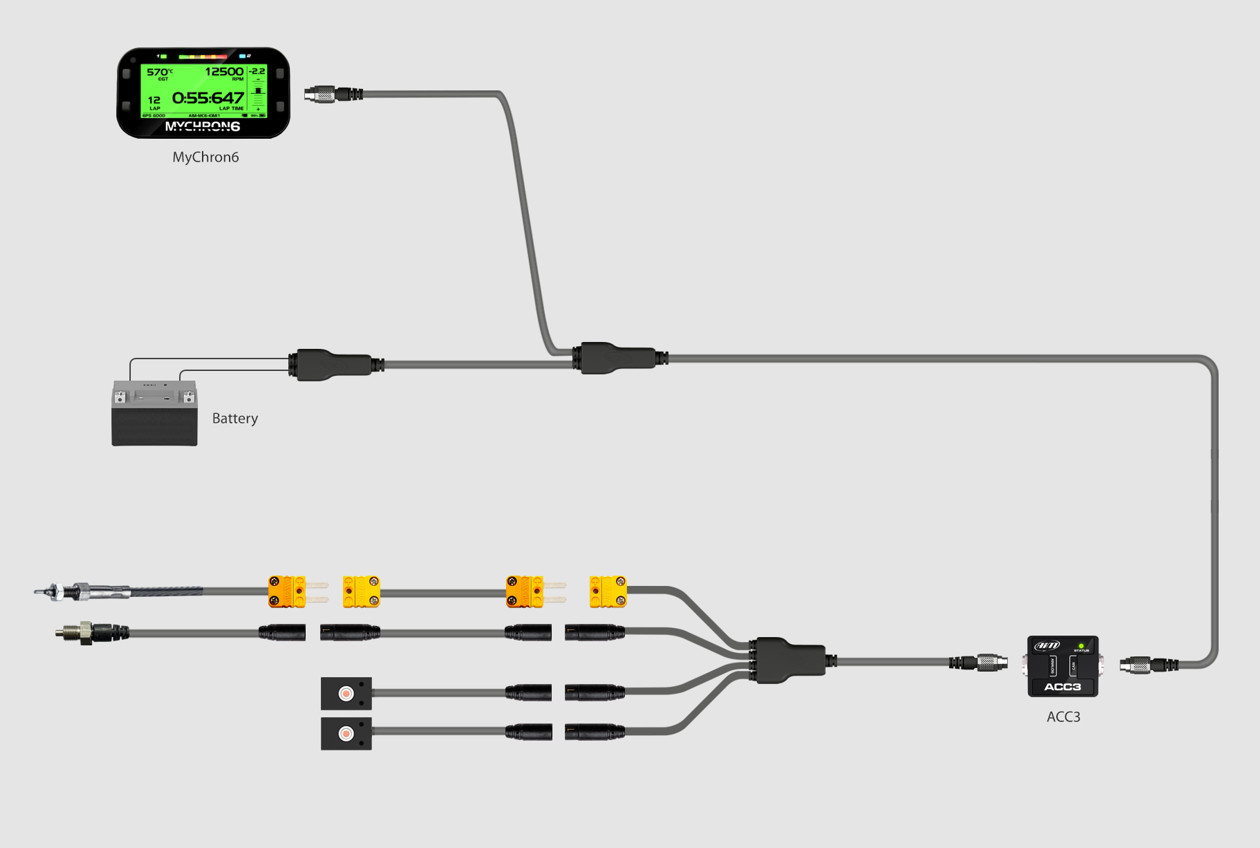

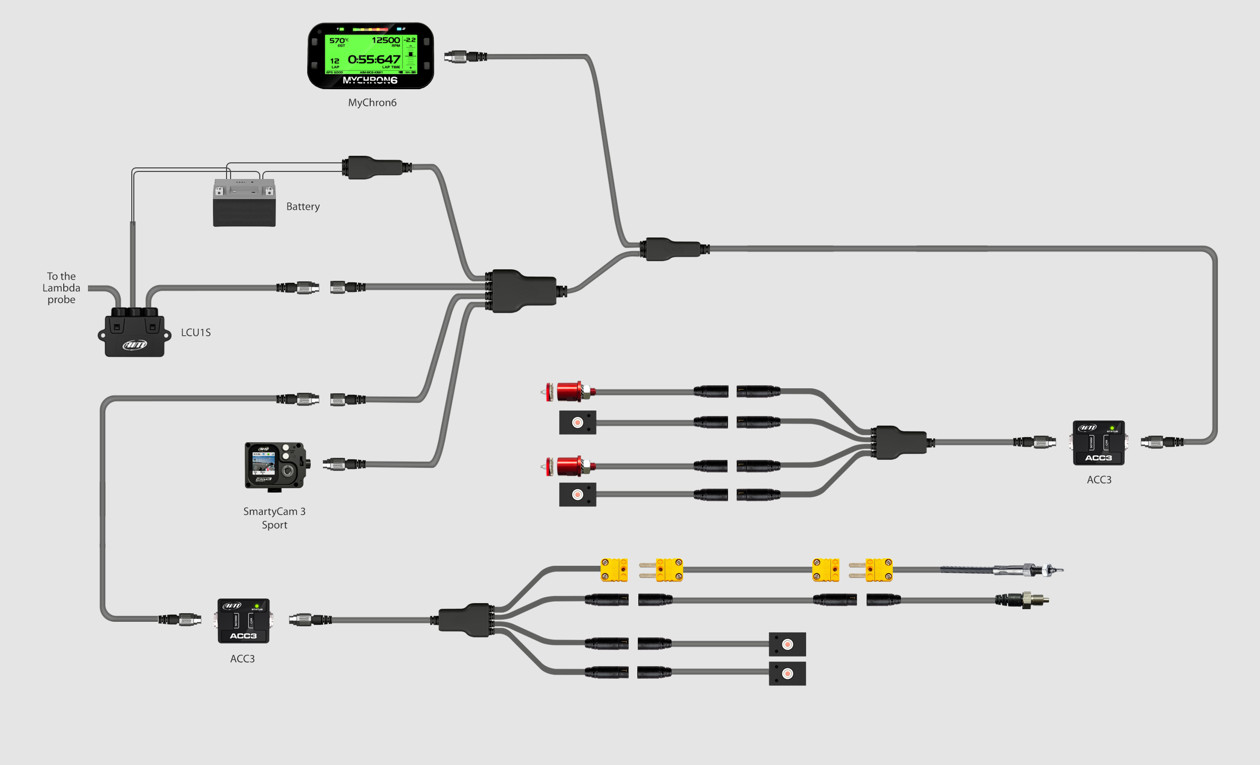

Connections example
Add-ons
Explore the vast range of accessories and add-ons that MyChron6 offers to tailor your kart to your specific needs.
Tire Temperature sensors have been specifically designed to measure the surface temperature of tires, providing important info for chassis tuning, tire exploitation, and driver behaviour.

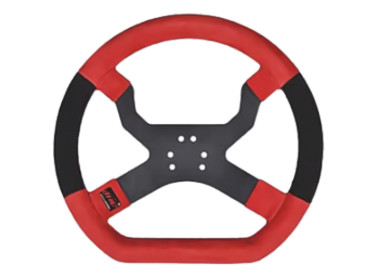

A dedicated steering wheel with a perforated plate compatible with MyChron series. It is available in red or black suede, hi-quality basting stitching, black grip pattern inserts for maximum grip.
Technical specifications
Display
Graphical
Display resolution
320x136 pixels
Backlight
8 configurable RGB colors
Shift lights/alarm LEDs
5 + 2 configurable RGB LEDs
Integrated track db
Yes
Wi-Fi connection
Yes
Bluetooth connection
Yes
GPS
25 Hz
External power
9÷15 V
CAN connections
2
Connectors
1 Binder 712 fem 3 pins connector 1 Binder 712 fem 8 pins connector 1 Binder 712 fem 5 pins connector
1 Binder 712 fem 7 pins connector
1 Binder 712 fem 8 pins connector 1 Binder 712 fem 5 pins connector
USB connection
For data download, mass storage support and battery charge
Temperature inputs
1
2
Inertial platform
6 axis, frequency 50 Hz
Digital inputs
Optical lap signal, Magnetic lap signal
External modules

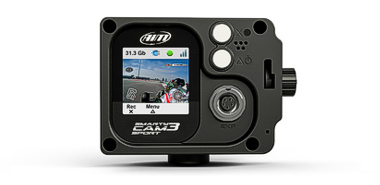

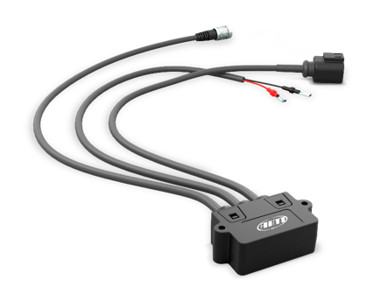

MyChron Expansion, IR Temperature Controller, SmartyCam 3 Series, LCU1S
