Sensors
>
If competing at the highest level is your aim, sensors are such a key element to complete a full racing package: collecting data at every lap, they let you know what is actually happening around your car, helping you to fix problems the car/bike/kart might face session after session and even make you understand how to improve your performance.
Engine temperature, water/oil, and tire temperature can be constantly monitored as well as oil pressure and brakes fluid pressure, displayed in real time on the dashlogger they interface with.
The AiM sensors, indeed, used by world-class teams all over the world, are made to endure the most critical conditions and they are extremely reliable when it comes to download and analyze the collected data.
They all feature a straight link, wired by a 4-pin binder and they have a standard pinout. A large range of extension cables is even available to simplify any installation. Furthermore, our users have the access, at our website, to the full technical documentation that will help to figure out any issue anyone might face.
ECLIPSE is the new line of AiM potentiometers. Easy to install, ECLIPSE linear position sensors offer great performances in terms of accuracy, repeatability and life expectancy.
AiM SENSORS RANGE:
TEMPERATURE SENSORS
PRESSURE SENSORS
POSITION SENSORS
SPEED SENSORS
RPM ADAPTERS AND RPM SENSORS

TEMPERATURE SENSORS
CHT - Cylinder head thermocouple
Ø14 mm, Binder con.
Ø12 mm, Binder con.
Ø10 mm, Binder con.
Ø14 mm, Mignon con.
Ø12 mm, Mignon con.
Ø10 mm, Mignon con.
X05SOT14A4517BML
3CVSOT12A4521
X05SOT10A4520BML
X05SOT14A4516MS
X05SOT12A4519ML
X05SOT10A4518MS
Exhaust Gas K type Thermocouple
3CVGAS807
T12 Exhaust gas thermocouple
CIK-FIA homologated
X05TCM12A1175M
Tire temperature sensor
X05TTS01B0
Tire temperature sensor kit
Tire temp. sensors kit
Tire temp. sensor
IR (infrared) temp. cont.
X08TTK014120
X05TTS01B0
XSMIRTEMP00
Water/oil PT100 thermoresistor
M5 thread
X05TRM05A4514BPR
Water/oil PT100 thermoresistor
M10 thread
X05TRM10A4512BPRS
Water PT100 thermoresistor 1/8'' thread
X05NPTA4513BPRS
Water thermocouple M10 thread
X05TCM10A4515MS
Water thermoresistor M10 thread
X05TRM10A4512BPS
*Download the sensor configuration file ready to import in RS2
PRESSURE SENSORS
Pressure sensor 0-5 bar
M10
3/8 24
X05PSA00005B10
X05PSA00005B38
Pressure sensor 0-5 bar absolute
M10
3/8 24
X05PSA00005B10A
X05PSA00005B38A
Pressure sensor 0-10 bar
M10
1/8 NPT
3/8 24
X05PSA00010B10
X05PSA00010B18
X05PSA00010B38
Pressure sensor 0-100 bar
M10
3/8 24
X05PSA00100B10
X05PSA00100B38
Pressure sensor 0-160 bar
M10
3/8 24
X05PSA00160B10
X05PSA00160B38
Pressure sensor 0-50 PSI
1/8 NPT X05PSA00050P18
Pressure sensor 0-50 PSI absolute
1/8 NPT X05PSA00050P18A
Pressure sensor 0-150 PSI
1/8 NPT X05PSA00150P18
Pressure sensor 0-300 PSI
1/8 NPT X05PSA00300P18
Pressure sensor 0-2000 PSI
1/8 NPT X05PSA02000P18
*Download the sensor configuration file ready to import in RS2
POSITION SENSORS
ECLIPSE car/bike linear potentiometer
Sensor ends with plastic male Binder 719
No joints Ball joint Pop joint
50 mm X05ELP050A X05ELP050ABJ X05ELP050APJ
75 mm X05ELP075A X05ELP075ABJ X05ELP075APJ
100 mm X05ELP100A X05ELP100ABJ X05ELP100APJ
125 mm X05ELP125A X05ELP125ABJ X05ELP125APJ
150 mm X05ELP150A X05ELP150ABJ X05ELP150APJ
175mm X05ELP175A X05ELP175ABJ X05ELP175APJ
200 mm X05ELP200A X05ELP200ABJ X05ELP200APJ
225 mm X05ELP225A X05ELP225ABJ X05ELP225APJ
250 mm X05ELP250A X05ELP250ABJ X05ELP250APJ
Sensor ends with plastic flying wires
No joints Ball joint Pop joint
50 mm X05ELP050FW X05ELP050FWBJ X05ELP050FWPJ
75 mm X05ELP075FW X05ELP075FWBJ X05ELP075FWPJ
100 mm X05ELP100FW X05ELP100FWBJ X05ELP100FWPJ
125 mm X05ELP125FW X05ELP125FWBJ X05ELP125FWPJ
150 mm X05ELP150FW X05ELP150FWBJ X05ELP150FWPJ
175mm X05ELP175FW X05ELP175FWBJ X05ELP175FWPJ
200 mm X05ELP200FW X05ELP200FWBJ X05ELP200FWPJ
225 mm X05ELP225FW X05ELP225FWBJ X05ELP225FWPJ
250 mm X05ELP250FW X05ELP250FWBJ X05ELP250FWPJ
1G kart steering potentiometer X05SNST01G
Kart accelerator/brake pedal
MyChron Expansion kit
eBox Extreme kit
X05SNAFME0
X05SNAFEE0
10G car/bike rotary potentiometer X05SNST10G
Car/bike throttle potentiometer X05SNRP972
SPEED SENSORS
Car speed sensor Honeywell
X05SNVS00
Car inductive speed sensor Contrinex
Plastic connector
Metallic connector
X05SNVDW0
X05SNVDW712
Car/bike magnetic speed sensor
Plastic connector
Metallic connector
X02SNVM00
X05SNVB301
Front wheel speed sensor
X05SNVK301
Rear axle speed sensor
X05SNVB301
Rear axle collar 30 mm
LCL552190
Rear axle collar 32 mm
LCL552180
Rear axle collar 40 mm
LCL552160
Rear axle collar 45 mm
LCL552200
Rear axle collar 50 mm
LCL552170


RPM ADAPTERS | RPM SENSORS

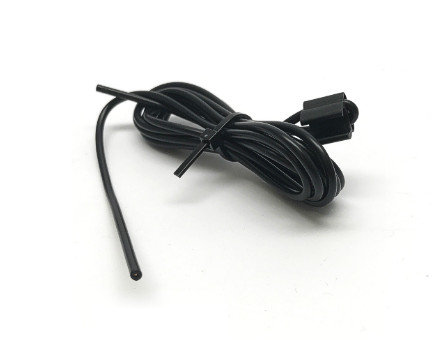

RPM clip
X05SNRPMY0
RPM coil adapter for EVO4 - ARP04
X50AARP040
RPM-ECU Coil adapter - ARP03
X05ADRPMM30
Spark plug inductive RPM adapter - ARP05
X10ADRPM000
