TECHNICAL SPECIFICATIONS
SOLO 2
SOLO 2 DL
 Display
Graphical
 Display resolution
238x99 pixels
 Display pages
Up to 5 freely configurable
 Backlight
7 configurable RGB colors
 Shift lights/alarm LEDs
10 configurable RGB LEDs
 Integrated track database
Yes
 Inertial platform
Internal 3 axis ±5G accelerometer + 3 axis gyro
+ 3 axis magnetometer
 Wi-Fi connection
Yes
 GPS
25 Hz
 External power
9÷15 V
 Memory
4 GB
 Battery type
Rechargeable Lithium
 Pushbuttons
Metallic

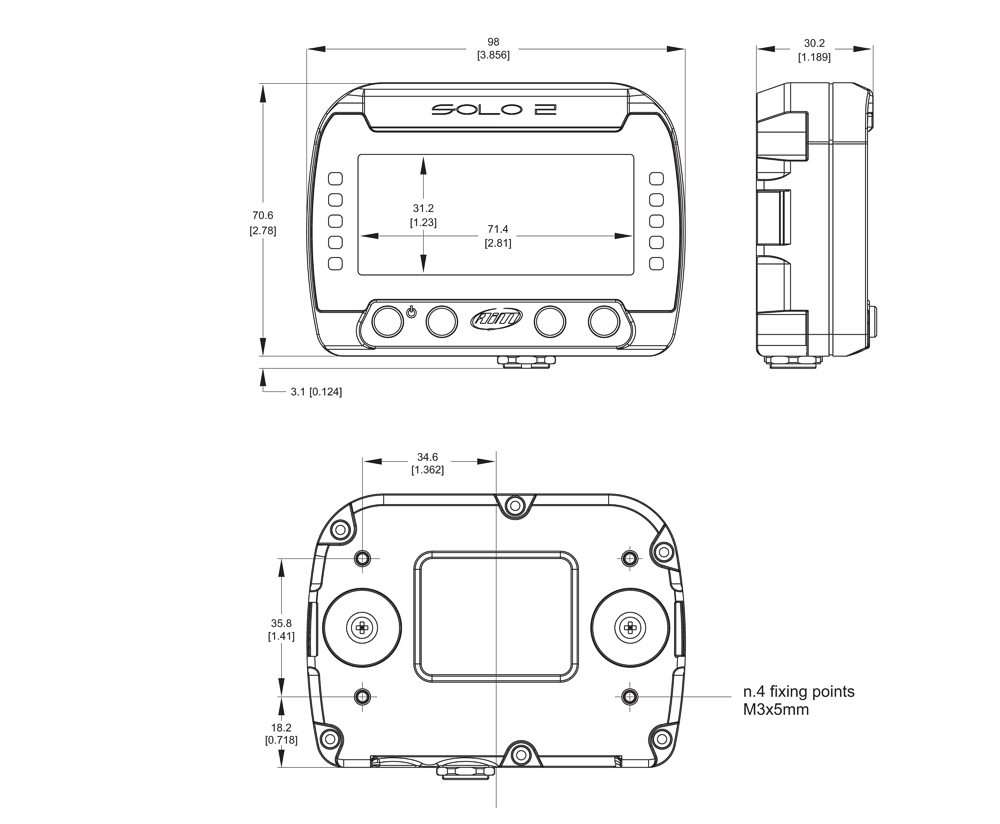

 Dimensions
98.0x73.7x30.2 mm
 Weight
240 g, battery included
 Waterproof
IP67
 Solo 2 DL
 ECU connection
CAN, RS232 or K-Line to 1,000 + industry leading ECUs
ACCESSORIES
BRACKET KITS
SUPPORT FOR ROLL-BAR
Part number X46KSTG00
The kit contains: 90 mm arm, roll-bar bracket, clamp base with ball, locknut, 4.5 cm and 5.5 cm tube clamp, gasket, screws and washers.
SUPPORT FOR GENERIC TUBE, max 3 cm diameter
Part number X46KSTP00
The kit contains: 90 mm arm, clamp base with ball, 2.5 and 3 cm (diameter) "U" shaped junctions, locknut, screws and washers.
SUPPORT FOR SUCTION CUP
Part number X46KSVS00
The kit contains: 90 mm arm, suction cup, clamp base with ball, locknut, screws and washers.
BAR PADS
Support for motocross:
Bar Pad for handle bars with cross brace
Part number X47KPSOLO2T20
In the box: Bar Pad, transparent protection cover, mounting bracket, 4 12 mm M3 screws, installation guide.
Bar Pad for handle bars without cross brace
Part number X47KPSOLO2T10
In the box: Bar Pad, transparent protection cover, mounting bracket, 4 12 mm M3 screws, installation guide.
DEDICATED KITS FOR OFF ROAD
ECU Taipan
ECU GET GP1 EVO and GET Power
ECU Vortex X10
Honda CRF 250 cc and 450 cc
Suzuki RMZ 250 and RMZ 450
Suzuki RMZ 250 and RMZ 450
 TM Racing SMX 450 FI and others
 TM Racing SMX 450 FI and others
DEDICATED KITS FOR SPORTS BIKES
APRILIA
BMW
DUCATI
HONDA
KAWASAKI
MV AGUSTA
SUZUKI
YAMAHA
TRACKDAY KIT
Trackday Kit with double bracket for Smartycam 3 Sport/Corsa and Solo 2 DL, the perfect way to record videos to improve driver and vehicle performance.
Click here to see the assembly instructions (Solo 2 DL and SmartyCam 3 Corsa).
Part numbers:
XS3CRFHD06722G2DL Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL UK
XS3CRFHD06722U2DL Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL USA
XS3CRFHD06722E2DL Trackday Kit SmartyCam 3 Corsa lens 67° + Solo 2 DL EU
XS3CRFHD08422G2DL Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL UK
XS3CRFHD08422U2DL Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL USA
XS3CRFHD08422E2DL Trackday Kit SmartyCam 3 Corsa lens 84° + Solo 2 DL EU
XS3S6722G2DL Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK
XS3S6722U2DL Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK
XS3S6722E2DL Trackday Kit SmartyCam 3 Sport lens 67° + Solo 2 DL UK
XS3S8422G2DL Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL UK
XS3S8422U2DL Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL USA
XS3S8422E2DL Trackday Kit SmartyCam 3 Sport lens 84° + Solo 2 DL EU
IN THE BOX OF SOLO 2 & SOLO 2 DL
Solo 2:
Solo 2, power cable with car lighter socket, power cable with AC adapter, mounting bracket with screws, user manual & Race Studio 3 software freely downloadable from AiM web site, AiM sticker.
Solo 2 DL:
Solo 2 DL, power cable with AC adapter, mounting bracket with screws, user manual & Race Studio 3 software freely downloadable from AiM web site, AiM sticker.
Concerning the cables you can choose among:
CAN/K-Line/External power cable with OBDII connector
CAN/RS232 external power cable
RPM/External power cable (if your vehicle has no ECU)
Note: all cables are available in these four versions: Australian, UK, USA and European adaptor.
