| TAIPAN TECH SPECS |
| Compatible models: |
|
|
| Additional characteristics to the stock ECU: |
| Two 0-5V analog inputs sampled at 1,000 Hz each, could be alternatively used as switch to ground |
| Second injector driver for high impedance saturated injectors (12 Ohm) |
| One low side driver (1A) |
Two CAN busses, one for calibration purposes, one for expansions
(AiM handlebar switch, dataloggers, dash ecc.) |
| Power consumption 150 mA |

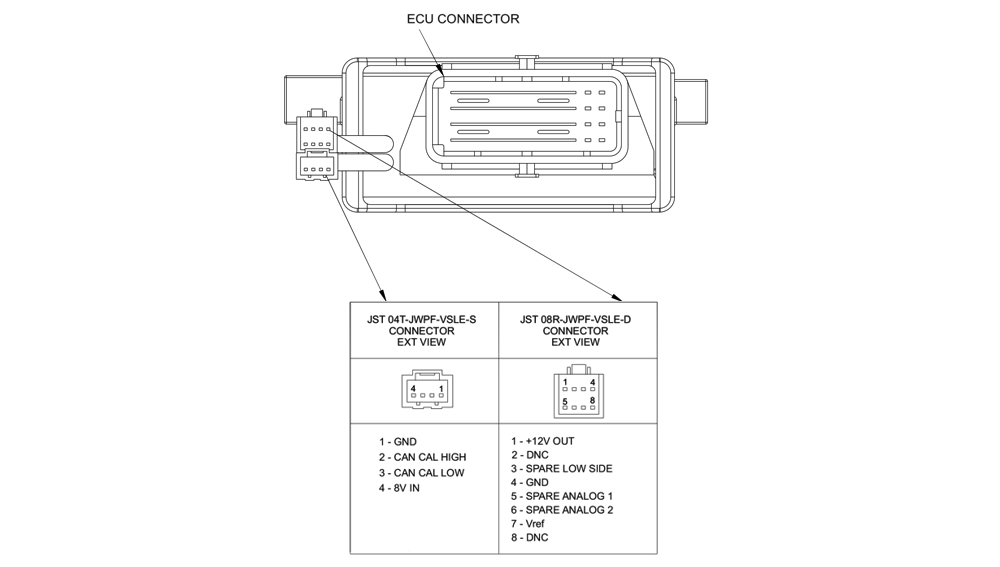

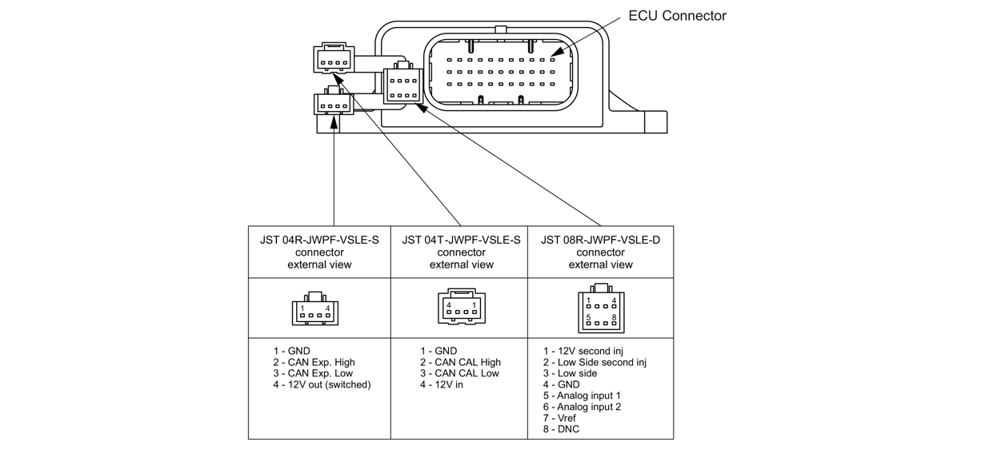

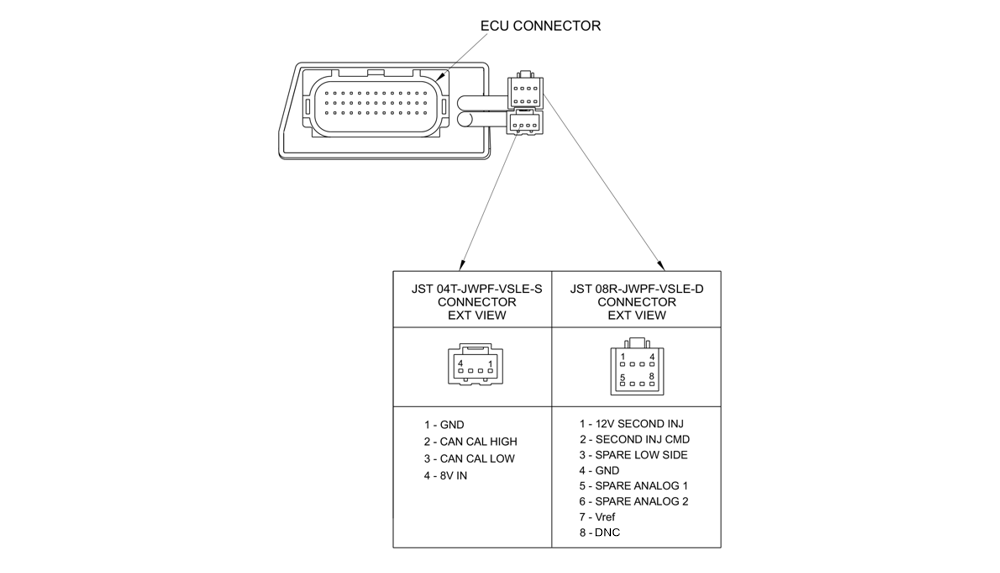

| Connectors |
n.1 JST 04T-JWPF-VSLE-S Connector
n.1 JST 08R-JWPF-VSLE-D Connector
n.1 JST 04R-JWPF-VSLE-S Connector
n.1 33 pin male Connector |
| Body |
PA6 + 30% glass fiber |

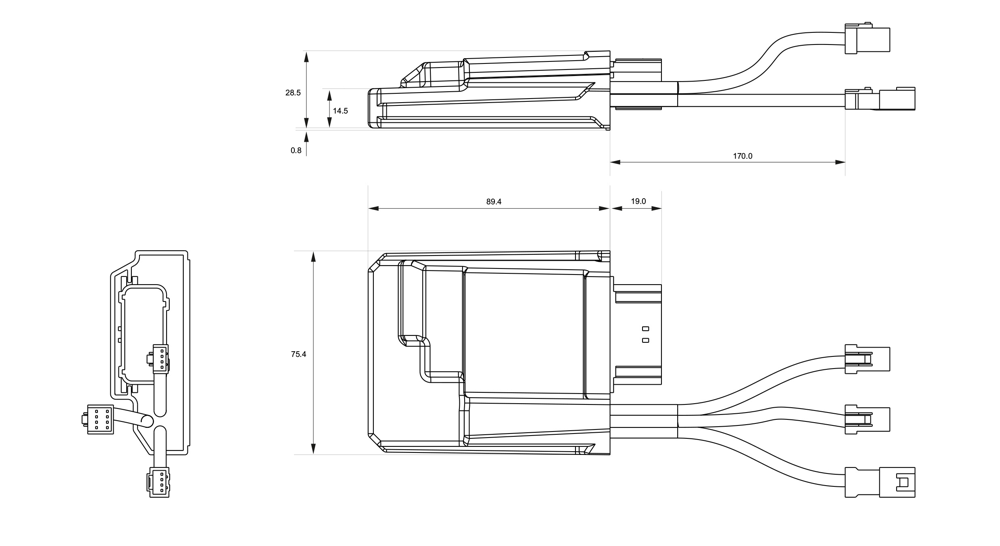

| Dimensions |
89.4x75.4x29.3 mm |
| Waterproof |
IP67 |
| Weight |
260 g |
|
