| TECHNICAL SPECIFICATIONS |
|
|
|
| Display |
5” TFT |
| Resolution |
800x480 pixels |
| Contrast |
600:1 |
| Brightness |
700cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Status information LEDs |
6 |
| Shift lights LEDs |
10 |
| CAN connections |
2 |
| ECU connections |
Yes |
| External modules |
GPS Module, Channel Expansion, Lambda Controller,
SmartyCam HD |
| Wi-Fi connection |
Yes |
| Internal memory |
4 GB |
| Body |
Anodized Aluminum |
| Connectors |
1 JAE connector + 2 Binder connectors |
| Power consumption |
400 mA |
| Dimensions |
166x97x23 mm |
| Weight |
530 g |
| Waterproof |
IP65 |
|
|
|
|

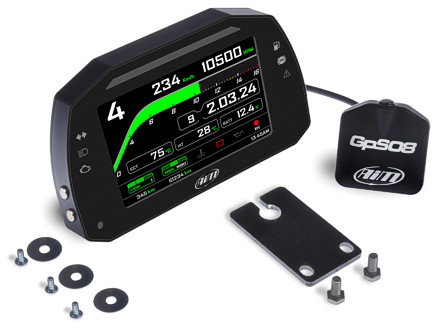

| IN THE BOX |
|
 |
|
| XA2MXS12A05R0KN1 |
MXK10-Gen5 dash logger with screws and washers, dedicated GPS Module
with anodized plate fixing
kit and screws |
|
|
|
|
|
